Daytime Demo:

Nighttime Demo:

What is WDR or Wide Dynamic Range

What is Dynamic Range?

Dynamic range is the difference between, or ratio, of the largest and smallest possible values of a measureable quantity, such as sound and light. In the case of cameras, dynamic range is the ratio of the lightest and darkest elements that are capable of being displayed on an image.

Wide Dynamic Range is a technology utilized by security cameras in order to balance out images that have a large dynamic range. An example of this situation would be if an indoor security camera were pointing towards a window or building entrance. During daytime, the image produced by the camera would be extremely washed out due to the high brightness of the incoming light. This effect is commonly seen in restaurants, stores, offices, and other buildings that have large windows or entrances.

Regular Lens BLC Compensation Wide Dynamic Range

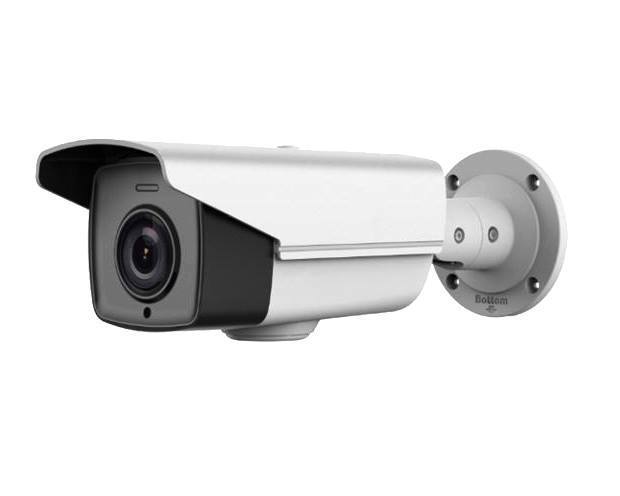

Features:

• 2 Megapixel high-performance CMOS

• Analog HD output, up to 1080P resolution

• 5-50mm motorized vari-focal lens

• True Day/Night

• OSD menu, 3D DNR, Smart IR

• True WDR, up to 120dB

• Up to 120m IR distance

• IP66 weatherproof

• Bulit-in Heater

• Up the Coax

Specification

• Image Sensor: | 2MP CMOS

• Image Sensor Signal System: | PAL/NTSC

• Effective Pixels: | 1944(H)×1092(V)

• Min. Illumination: | 0.01Lux @ (F1.2,AGC ON),0 Lux with IR

• Shutter Time: | 1/25(1/30) s to 1/50,000 s

• Lens: | 5-50mm motorized VF lens, Angle of view: 59.8°-6.2°

• Adjustment Range: | Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°

• Day& Night: | IR cut filter with auto switch

• Wide Dynamic Range: | 120dB

• Video Frame Rate: | 1080p@25fps/1080p@30fps

• HD Video Output: | 1 Analog HD output Synchronization: | Internal

Synchronization

• CVBS Output: | 1Vp-p Composite Output(75Ω/BNC)

• S/N Ratio: | More than 62 dB

• Up the Coax: | Support

Menu

• Camera ID: | On/off (15 characters, position programmable)

• Auto White Balance: | ATW/ AWC-SET/ Indoor/ Outdoor/ Manual

• Private Mask: | On/Off, maximum 8 zones

• Motion Detection: | On/Off, maximum 4 zones

• BLC: | On/Off

• AGC: | Support

• Anti-flicker: | On/ Off

• Language: | English/Chinese

• Function: | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM

• Scene: | Indoor, Outdoor, Indoor1, LOW-LIGHT

General

• Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)

• Power Supply: | 12 VDC±15%, 24 VAC±15%

• Power Consumption: | Max. 20W

• Weather Proof: | IP66

• Heater: | Support

• IR Range: | Up to 120m

• Communication : | Up the coax Protocol: Pelco-C(CVBS output), Qube(TVI output)

• Dimension: | 313.5*100.8*107.3

• Weight: | 1700g
