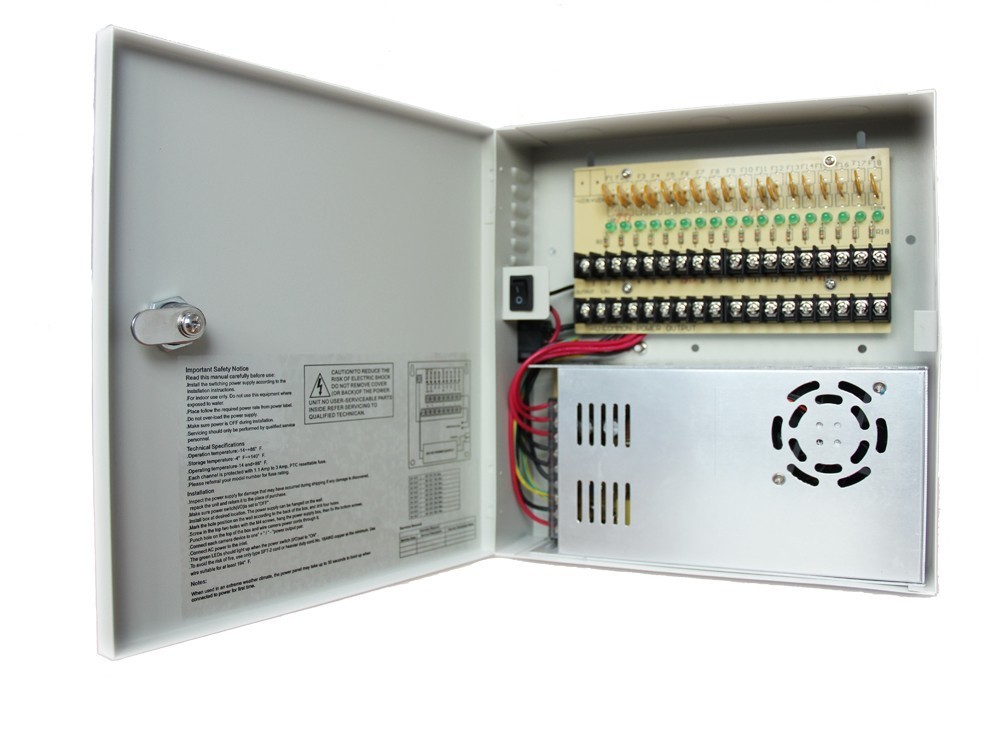

Qube 18CH (30 AMPERE) CENTRALIZE POWER SUPPLY

Specification

• Model Centralize Power Supply (QPSU-300-18CH)
• Input Voltage: AC200 - 240V
• Input Voltage Frequency: 50/60Hz

• Output Voltage: 12 VDC
• Total Output Current: 30 Amperes
• Fuse Type: PTC (Resetable fuse)
• Fuse Rating: 1.1Amps / 60VAC

• General Protection: each output has individual PTC (Resetable) fuse and LED indicator, when problem occurs,only affect the individual output, other outputs still working
• Circuit Short Protection: when short condition occurs, individual PTC (Resetable) fuse will open the circuit, when condition removed, PTC (Resetable) fuse will automatically back to close
• High Voltage Protection: when high voltage occurs, the surge protection will be hit through to protect the connected device
• Over Current Protection: when over current occurs, the power supply will automatically switch toself-protection status, when condition removed, then switch back to normal

• Power ON/OFF switch
• Unit maintains camera synchronization
• Easy installation saves time and eliminates costly labor

• CCTV: Camera, PTZ, IR Illuminators, Video Process Equipment, etc.
• Access Control: Reader, Lock, Panel, etc.
