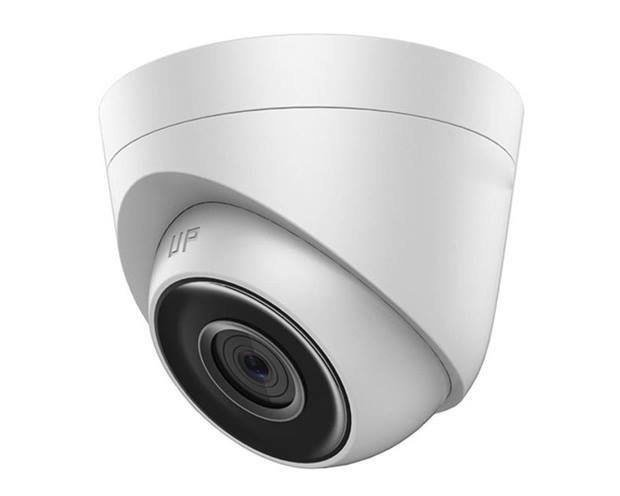

Qube Dome Indigo-IP 2.0MP / 30M IR Length / 2.8mm / POE

More IP Premium Cams & Recorder Options, Click here

Daytime Demo:

Nighttime Demo:

Features:

• 1/2.8" progressive scan CMOS

• Up to 2.0 megapixel

• 2.8mm fixed focal lens

• Up to 30 m IR range

• Digital WDR (Wide Dynamic Range)

• 3D DNR (Digital Noise Reduction)

• PoE (Power over Ethernet)
• Mobile monitoring

• IP67 Waterproof

Specification:

Camera

• Image Sensor: 1/2.8" progressive scan CMOS

• Min. Illumination Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR

• Shutter Speed: 1/3s to 1/100,000 s, support slow shutter

Lens

• 2.8 mm @F2.0, horizontal field of view 105.8°

• Lens Mount: M12

• Day &Night: IR cut filter with auto switch

• 3-Axis Adjustment (Bracket): Pan: 0° to 360°, tilt: -90°to 90°, rotation:0° to 360°

• DNR(Digital Noise Reduction): 3D DNR

• WDR (Wide Dynamic Range): Digital WDR

Compression Standard

• Video Compression: Main stream: H.264+/H.264

• Sub stream: H.264/MJPEG

• H.264 Type: Baseline profile/Main profile

• Video Bit Rate: 32 Kbps to8 Mbps


• Max. Resolution: 1920 × 1080

• Main Stream: Max. Frame Rate

• 50Hz: 25fps @(1920 × 1080, 1280 × 960, 1280 × 720)

• 60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-stream: Max. Frame Rate

• 50Hz: 25fps @(704 × 576, 640 × 480, 352 × 288,320 × 240)

• 60Hz: 30fps @(704 ×480, 640 × 480, 352 × 240,320 × 240)

• Image Settings: Brightness, saturation, contrast, sharpness are adjustable via web browser or client software

• Day/Night Switch: Support auto, scheduled

• Others: Mirror, BLC (area configurable), region of interest (support 1 fixed region)

Network

• Network Storage: NAS (NFS,SMB/CIFS)

• Detections: Motion Detection

• Alarms: Video tampering, network disconnected, IP address conflicted

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour

• Standard: ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI

• General Function: Anti-flicker,heartbeat, mirror, password protection, privacy mask,watermark, IP address filter

Interface

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

General

• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

• Power Supply: 12VDC± 25%, PoE (802.3af)

• Power Consumption: Max. 5 W/6.5 W (PoE)

• Ingress Protection: IP67

• IR Range: Up to 30 m

• Dimensions: Φ 85.5 mm × 70 mm (3.38"× 2.76")

• Weight: 350 g (0.77 lb.)
