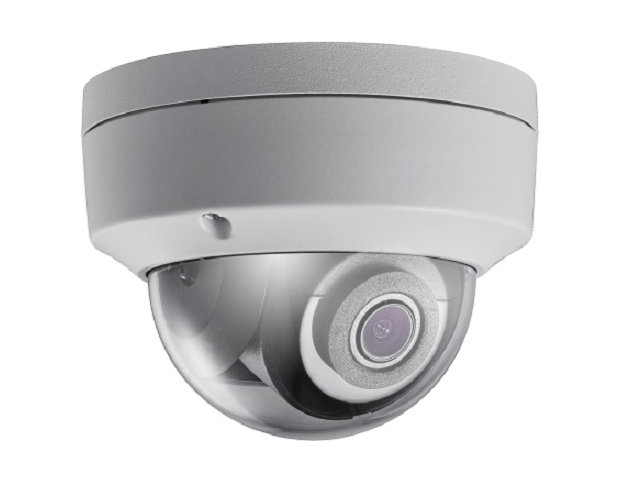

Qube Dome Potoo-IP 4.0MP / 4mm / 30M IR / WDR / Support Micro SD / POE

More IP Premium Cams & Recorder Options, Click here

P750.83 / Month for 6 Months. Pls call our Stores to inquire about qualified credit card.

Daytime Demo:

Nighttime Demo:

Features:

• 1/3" Progressive Scan CMOS

• 2688 ×1520@30fps Up to 4.0 megapixel

• 4mm fixed focal lens

• IR Distance 30M
• Three streams
• BLC/3D DNR/ROI

• 120dB Digital WDR (Wide Dynamic Range)

• 2 Behavior analyses, and face detection

• PoE (Power over Ethernet)
• Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
• 3-Axis adjustment

• IP67 Waterproof

Specification:

Camera

• Image Sensor: 1/3" Progressive Scan CMOS

• Signal System: NTSC

• Min. Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

• Shutter time: 1/3 s to 1/100,000 s

• Slow shutter: Support

• Lens: 4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°

• Lens Mount: M12

• Adjustment Range: Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

• Day& Night: IR cut filter with auto switch

• Wide Dynamic Range: 120 dB

• Digital noise reduction: 3D DNR

• Focus: Fixed

Compression Standard

• Video Compression: H.265+/H.265/H.264+/H.264/MJPEG

• Video bit rate: 256Kbps~16Mbps

• Audio Compression: -S: G.711/G.722.1/G.726/MP2L2/PCM

• Audio bit rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

• Triple Streams: Yes


• Max. Image Resolution: 2688 × 1520

• Frame Rate: 50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

• 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

• Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

• 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

• Third Stream: 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

• 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

• Image Enhancement: BLC/3D DNR/BLC

• Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

• Target Cropping: No

• ROI: 1 fixed region for main stream and sub-stream

• Day/Night Switch: Day/Night/Auto/Schedule/Triggered by alarm in (-S)

Network

• Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

• Alarm Trigger: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

• General Function: One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering

• System Compatibility: ONVIF (Profile S, Profile G),ISAPI

Interface

• Audio: with -S model：1 input (line in), 1 output (line out), mono sound, terminal block

• Communication Interface: 1 RJ45 10M / 100M Ethernet interface

• Alarm: with -S model：1 input, 1 output (max. 12 VDC, 30 mA), terminal block

• On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

• Reset Button: Yes

Audio

• Environment Noise Filtering: Support(-S)

• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Smart Feature-set

• Behavior Analysis: Line crossing detection, intrusion detection

• Line Crossing Detection: Cross a pre-defined virtual line

• Intrusion Detection: Enter and loiter in a pre-defined virtual region

• Recognition: Face Detection

General

• Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)

• Humidity 95% or less (non-condensing)

• Power Supply: 12 VDC ± 25%, PoE (802.3af Class3)

• Power Consumption: 12 VDC, 0.5A, max. 6W

• PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W

• Weather Proof: IP67

• IR Range: Up to 30m

• Dimensions: Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″)

• Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″)

• Weight: Camera: Approx. 610 g (1.3 lb.)

• With Package: Approx. 820 g (1.8 lb.)
