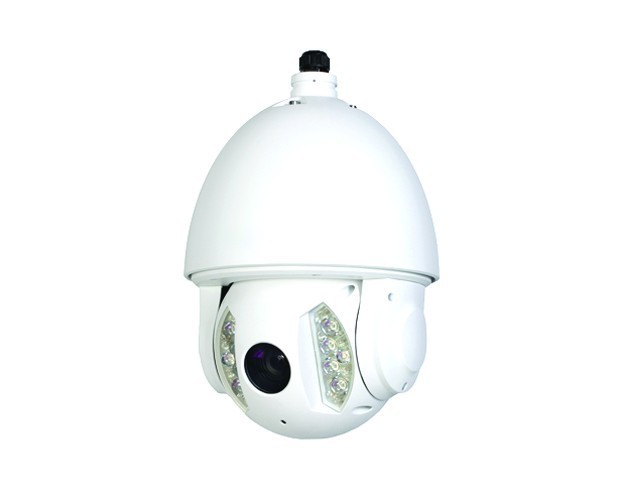

Qube PTZ FLYCATCHER 20X OPTICAL ZOOM / 150METERS / 720P CCTV Camera

Specification

Model FLYCATCHER D-CPZ20X-7P15M

• Image Sensor: 1/3” Exmor CMOS
• Effective Pixels: 1280(H) x 960(V)
• Scanning System: Progressive
• Electronic Shutter Speed: 1/1 ~ 1/30,000s
• Min. Illumination Color: 0.05Lux@F1.4; B/W: 0.005Lux@F1.4; 0Lux (IR on)
• S/N Ratio: More than 55dB
• Resolution: 25/30/50/60fps@720P
• Video Output: 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)

Camera Features

• Day/Night: Auto(ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / DWDR (Digital WDR)
• White Balance: Auto, ATW, Indoor, Outdoor, Manual
• Gain Control: Auto / Manual
• Noise Reduction: 2D/3D
• Privacy Masking: Up to 24 areas
• Digital Zoom: 16x

Lens

• Focal Length: 4.7mm~94mm(20x Optical zoom)
• Max Aperture: F1.4 ~ F2.6
• Focus Control: Auto / Manual
• Angle of View: H: 54.1° ~ 3.2°
• Close Focus Distance: 100mm~ 1000mm

PTZ

• Pan/Tilt Range: Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180°
• Manual Control Speed: Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
• Preset Speed: Pan: 240° /s; Tilt: 200° /s
• Preset: 300(DH-SD), 255(Pelco-P/D)
• PTZ Mode: 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Setup: Human-oriented focal length/ speed adaptation
• Power up Action: Auto restore to previous PTZ and lens status after power failure
• Idle Motion: Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
• Time Task: Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
• Protocol Pelco-P/D: (Auto recognition)
• IR Distance: 150m
• Interface: 1 channel In
• RS485: 1
• Alarm: 2/1 channel In/Out

General

• Power Supply: AC 24V/3A (±10%)
• Power Consumption: 15.2W, 38.2W (IR on, Heater on)
• Working Environment: -40ºC ~ 70ºC / Less than 90% RH
• Ingress Protection: IP66
• Vandal Resistance: N/A
• Dimensions: Φ252(mm) x 384.3 (mm) / 10" x 15"
• Weight: 6.75kg
