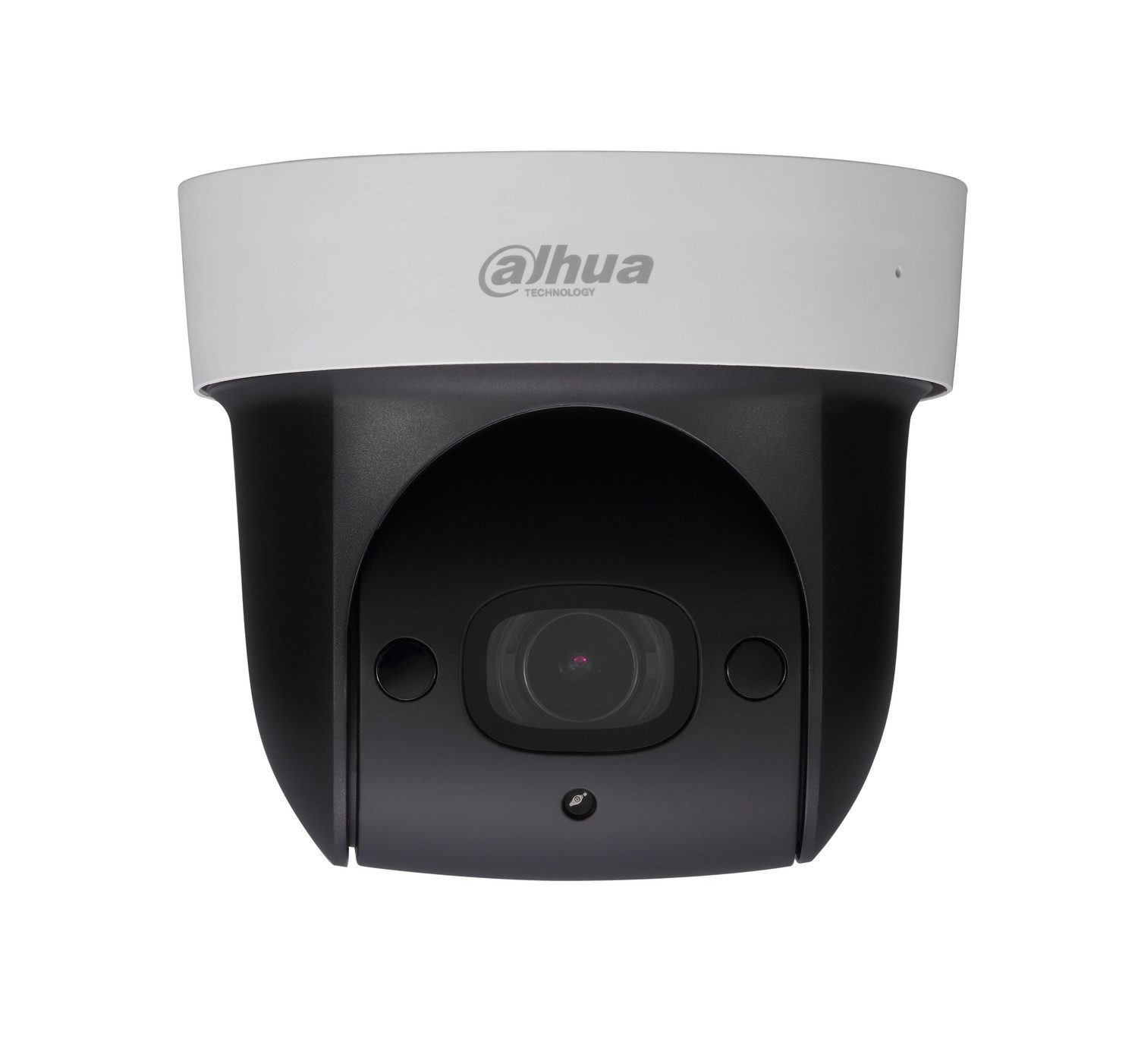

Qube REDDISH IN-4XCVI 2MP / 4X ZOOM / 30M IR / POE

Specification

• Model REDDISH

• Image Sensor 1/2.8” CMOS
• Effective Pixels 1920(H) x 1080(V), 2Megapixels
• Scanning System Progressive
• Electronic Shutter Speed 1/1 ~ 1/30,000s
• Min. Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
• S/N Ratio More than 50dB

• Day/Night Auto(ICR) / Color / B/W
• Backlight Compensation BLC / HLC / DWDR (Digital WDR)
• White Balance Auto, ATW, Indoor, Outdoor, Manual
• Gain Control Auto / Manual
• Noise Reduction Ultra DNR (2D/3D)
• Privacy Masking Up to 24 areas
• Digital Zoom 16x

• Focal Length 2.7mm~11mm(4x Optical zoom)
• Max Aperture F1.6~ F2.8
• Focus Control Auto / Manual
• Angle of View H: 112.5° ~ 39°

• Pan/Tilt Range Pan: 0° ~ 360° limited; Tilt: 0° ~ 90°, auto flip 180°
• Manual Control Speed Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s
• Preset Speed Pan: 100° /s; Tilt: 60° /s
• Preset 300
• PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
• Speed Setup Human-oriented focal length/ speed adaptation
• Power up Action Auto restore to previous PTZ and lens status after power failure
• Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
• IR Distance 30m

• Compression H.264 / MJPEG
• Resolution 1080P(1920×1080)/ 720P(1280×720) / D1(704×576/ 704×480) /CIF
• (352×288/352×240)
• Frame Rate Main Stream 1080P(1 ~ 25/30fps)/ 720P (1 ~ 50/60fps)
• Sub Stream D1/CIF(1 ~ 25/30fps)
• Bit Rate H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps

• Compression G.711a / G.711Mu(32kbps)/ PCM(128kbps)
• Interface Built-in Mic

• Ethernet RJ-45 (10/100Base-T)
• WIFI N/A
• Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• ONVIF ONVIF Profile S
• Max. User Access 20 users
• Smart Phone iPhone, iPad, Android, Windows Phone
• Auxiliary Interface
• Memory Slot Micro SD, Max 64GB

• Power Supply DC12V, POE
• Power Consumption 10W, 13W (IR on)
• Working Environment -30ºC ~ 60ºC / Less than 90% RH
• Dimensions Φ132.7 (mm) x 116.5 (mm) / 5" x 4.5"
• Weight 0.95kg
