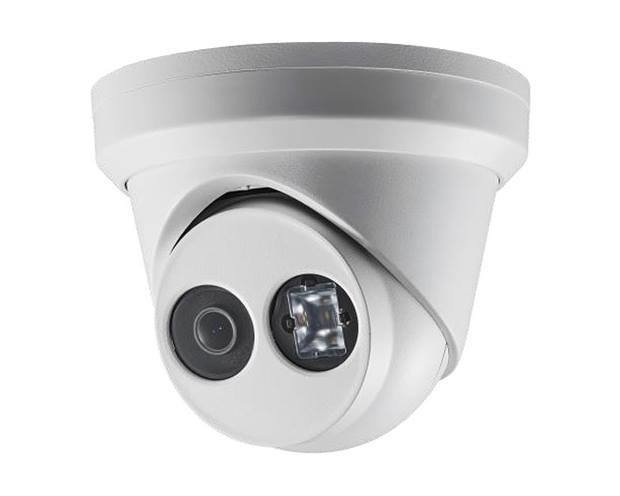

Qube Spotted-IP 8MP / 30M IR Length / Fixed 2.8mm / WDR / Face Detection / POE

More IP Premium Cams & Recorder Options, Click here

P1528.16 / Month for 6 Months. Pls call our Stores to inquire about qualified credit card.

Daytime Demo:

Nighttime Demo:

Features:

• Up to 8 megapixel high resolution

• Max. 3840 × 2160@20fps

• 2.8mm fixed lens

• 120dB Wide Dynamic Range

• IR range: up to 30m

• Support on-board storage, up to 128 GB

• IP67 Waterproof

Specification:

Camera

• Image Sensor: | 1/2.5" Progressive Scan CMOS
• Signal System: | PAL/NTSC
• Min. Illumination: | Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR

• Shutter time: | 1/3 s to 1/100,000 s

• Slow shutter: | Support

• Lens: | 2.8 mm, horizontal field of view: 102°

• Lens Mount: | M12

• Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°

• Day& Night: | IR cut filter with auto switch

• Wide Dynamic Range: | 120 dB

• Digital noise reduction: | 3D DNR

• Compression Standard

• Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG

• Video bit rate: | 32Kbps~16Mbps

• Triple Streams: | Yes


• Max. Image Resolution: | 3840 × 2160

• Frame Rate: | 50Hz: 20 fps (3840 × 2160), 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 20 fps (3840 × 2160), 30 fps (2560 × 1920, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub Stream: | 50Hz: 25fps (640 × 360, 352 × 288)

60Hz: 30fps (640 × 360, 352 × 240)

Third Stream: | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

• Image Enhancement: | BLC/3D DNR

• Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

• Target Cropping: | Support

• ROI: | Support 1 fixed region for each stream

• Day/Night Switch: | Auto/Scheduled

Network

• Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

• General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy

mask, Watermark, IP address filtering

• System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI

Interface

• Communication Interface: | 1 RJ45 10M / 100M Ethernet interface

• On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Smart Feature-set

• Behavior Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection

• Line Crossing Detection: | Cross a pre-defined virtual line

• Intrusion Detection: | Enter and loiter in a pre-defined virtual region

• Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials

• Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display.

• Recognition: | Face Detection

General

• Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)

• Humidity 95% or less (non-condensing)

• Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3)

• Power Consumption: | 12 VDC ± 25%, 6.2W

• PoE(802.3af, class 3), 9W

• Weather Proof: | IP67

• IR Range: | Up to 30m

• Dimensions: | Camera: Φ 127.3 × 95.9 mm (5.01″ × 3.78″)

• Package: 150 × 150 × 141 mm (5.91″ × 5.91″ × 5.55″)

• Weight: | 620 g (1.37 lb.)
